Kit Contents
12 Revit Families, 25 Types, delivered in Revit 2022.

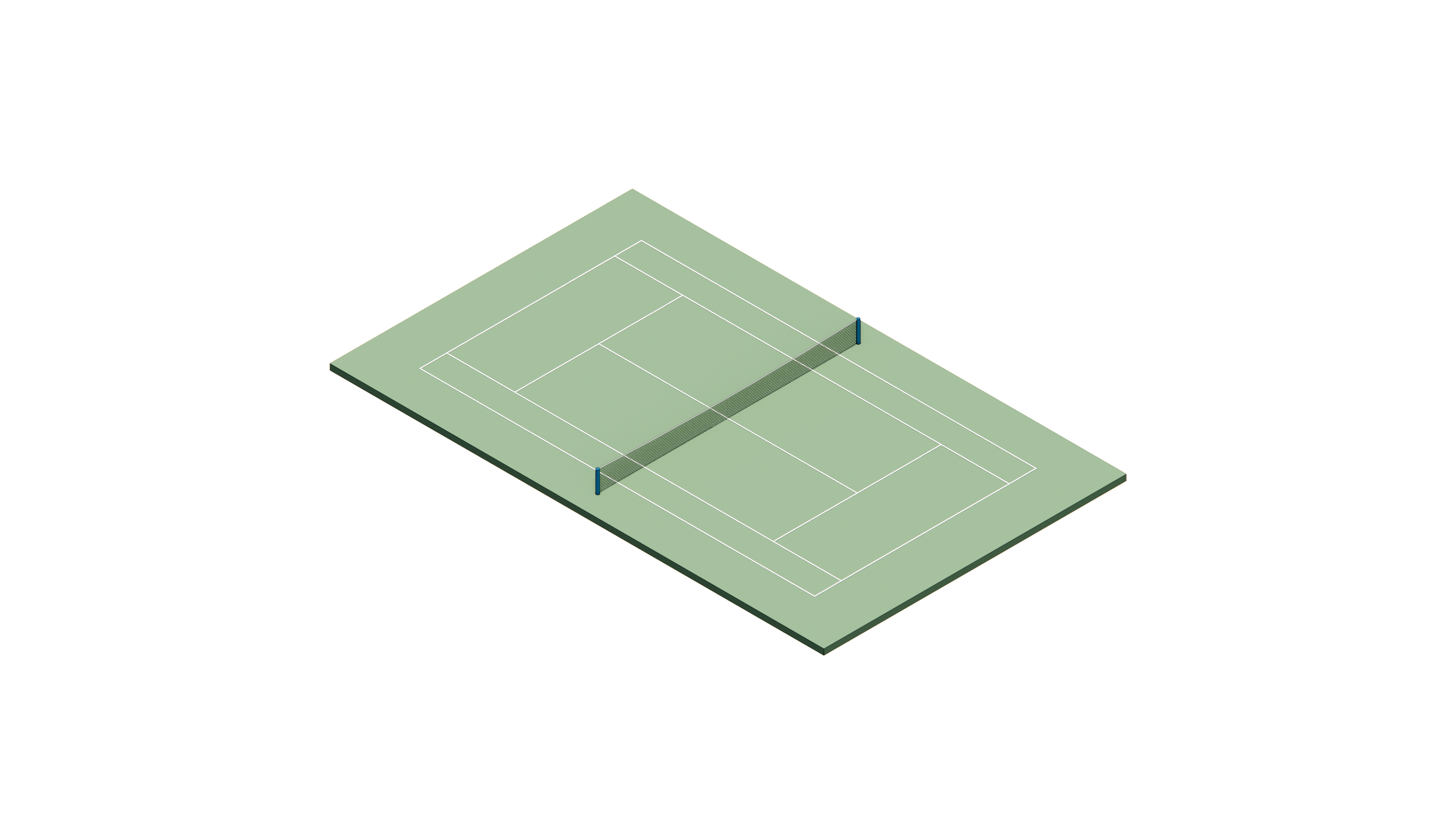

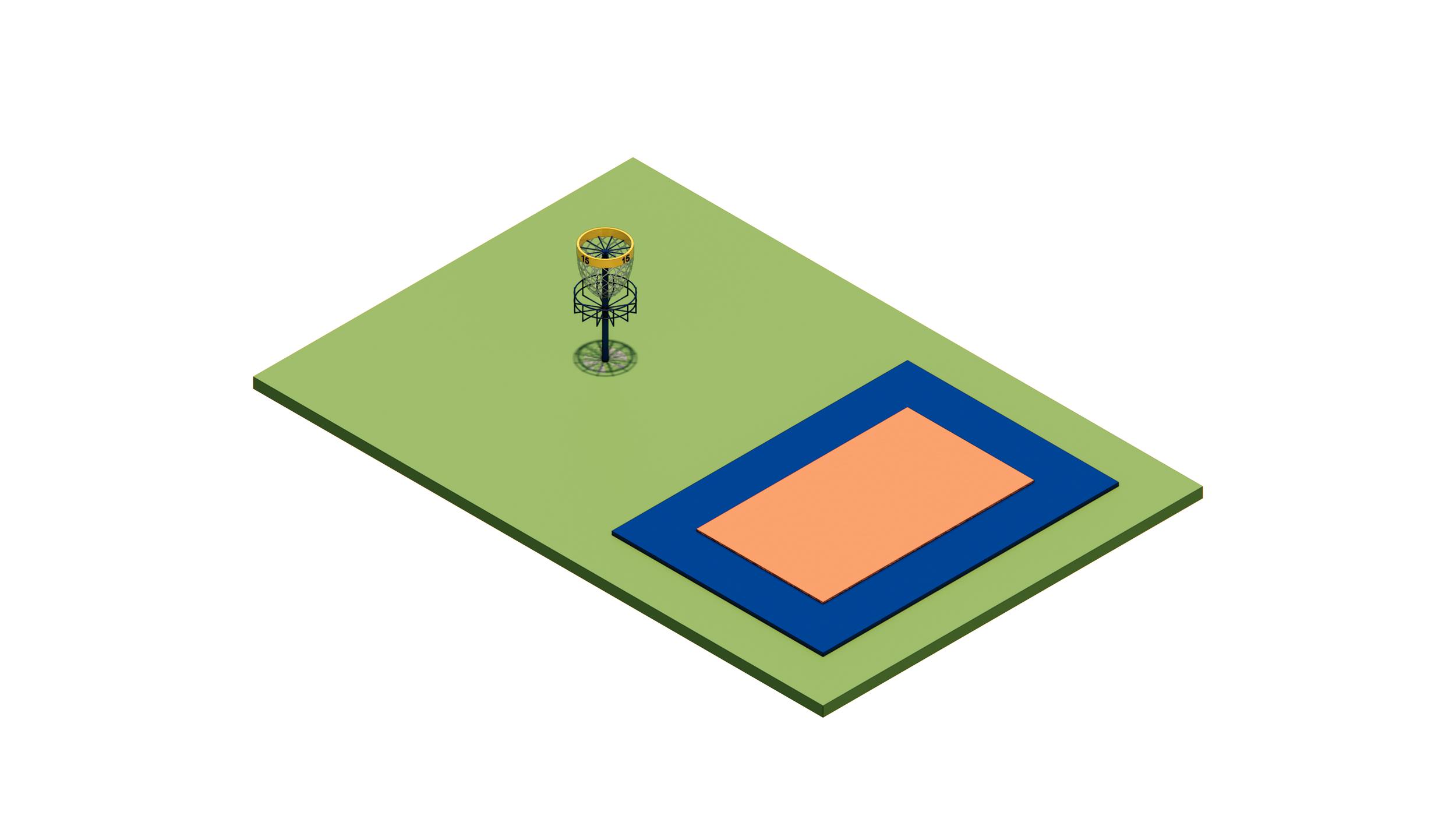

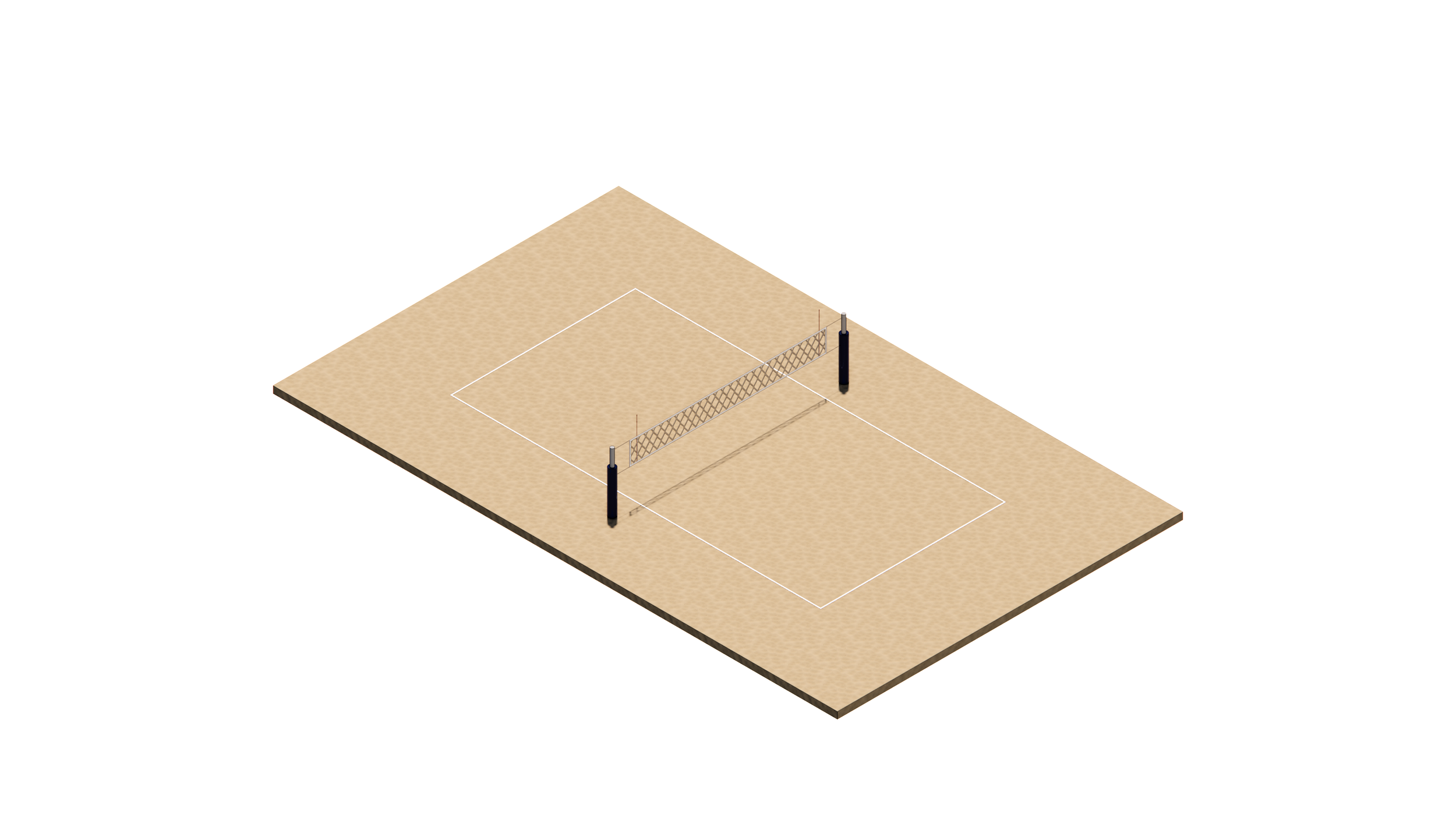

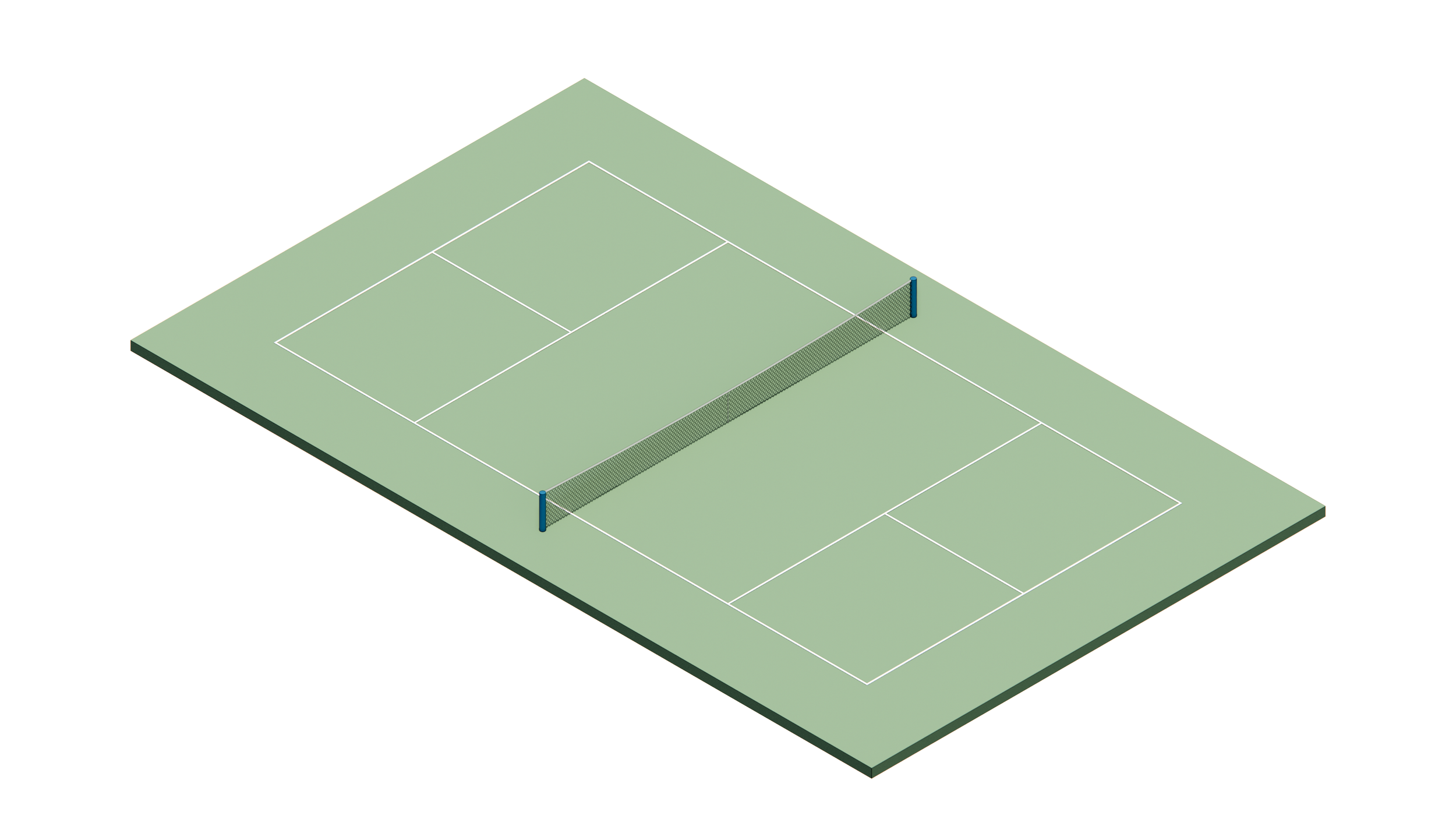

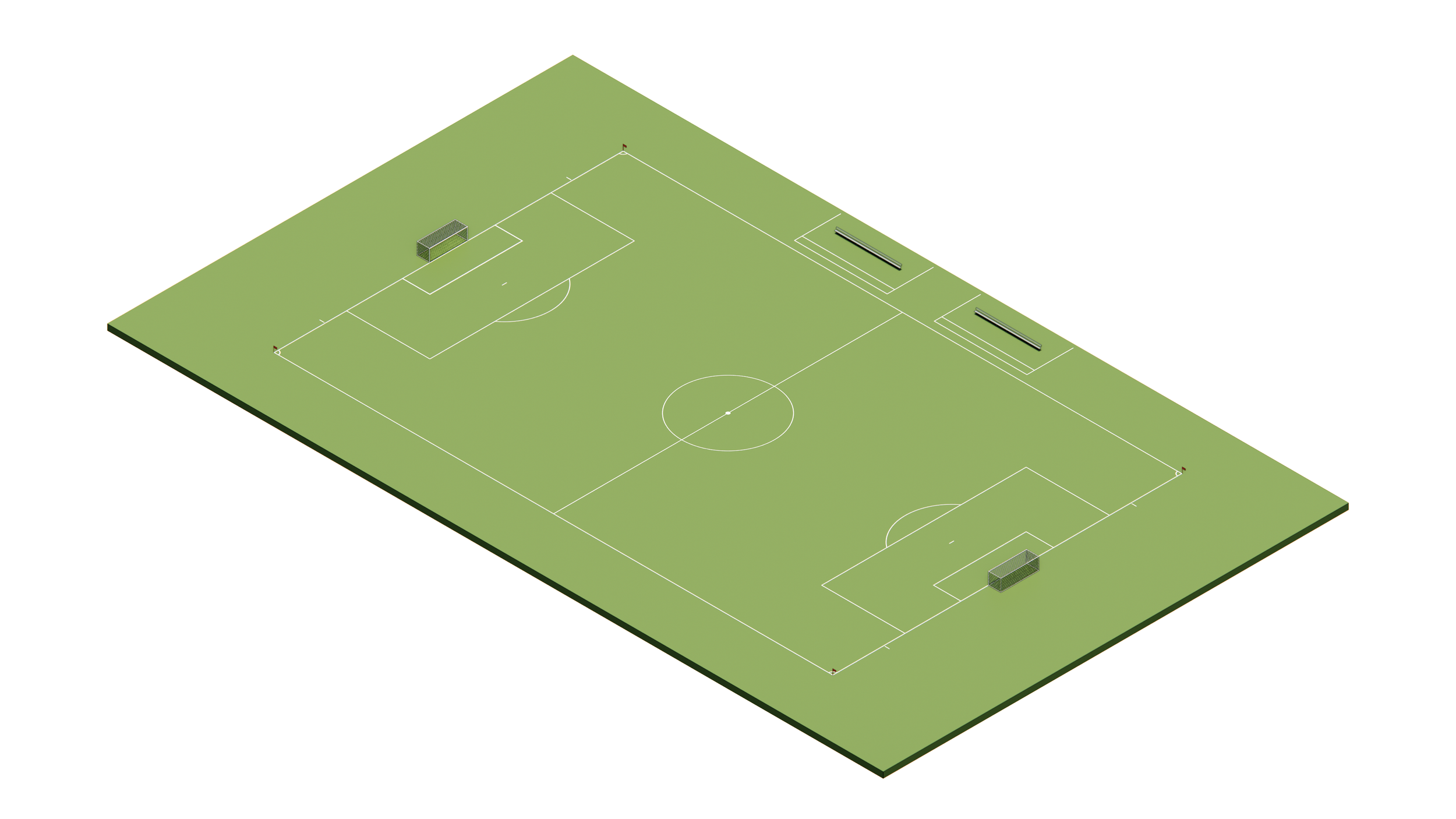

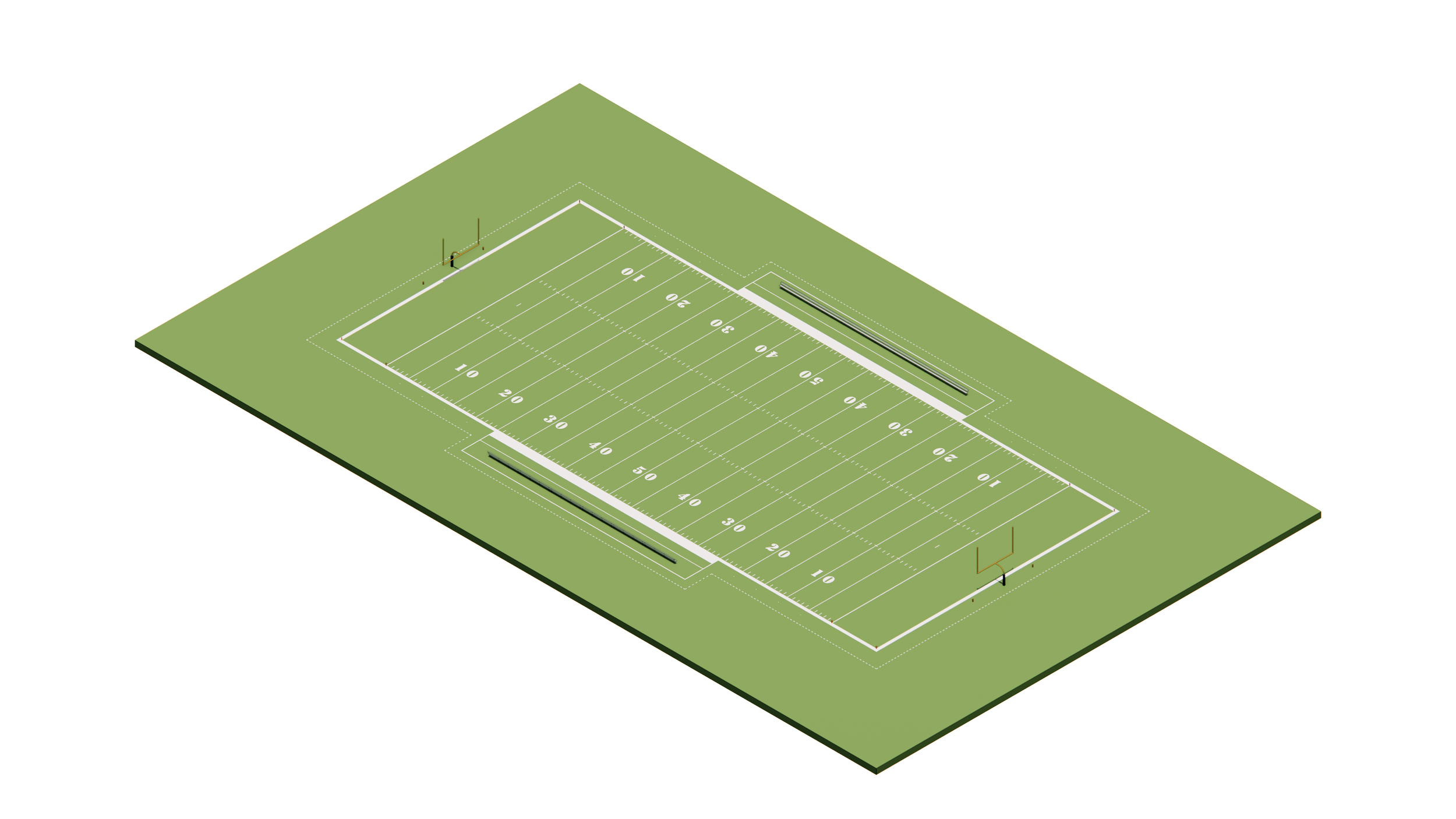

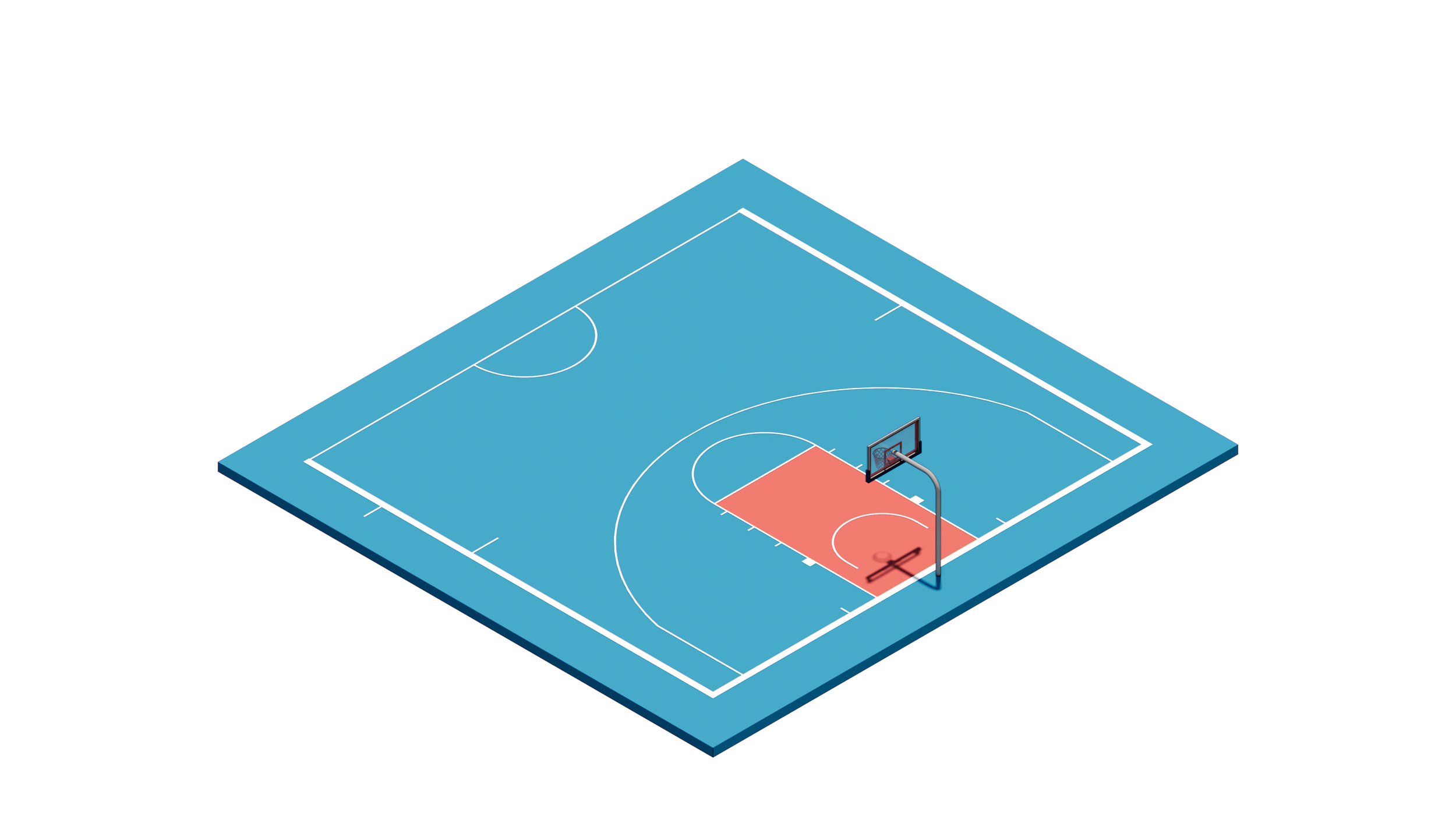

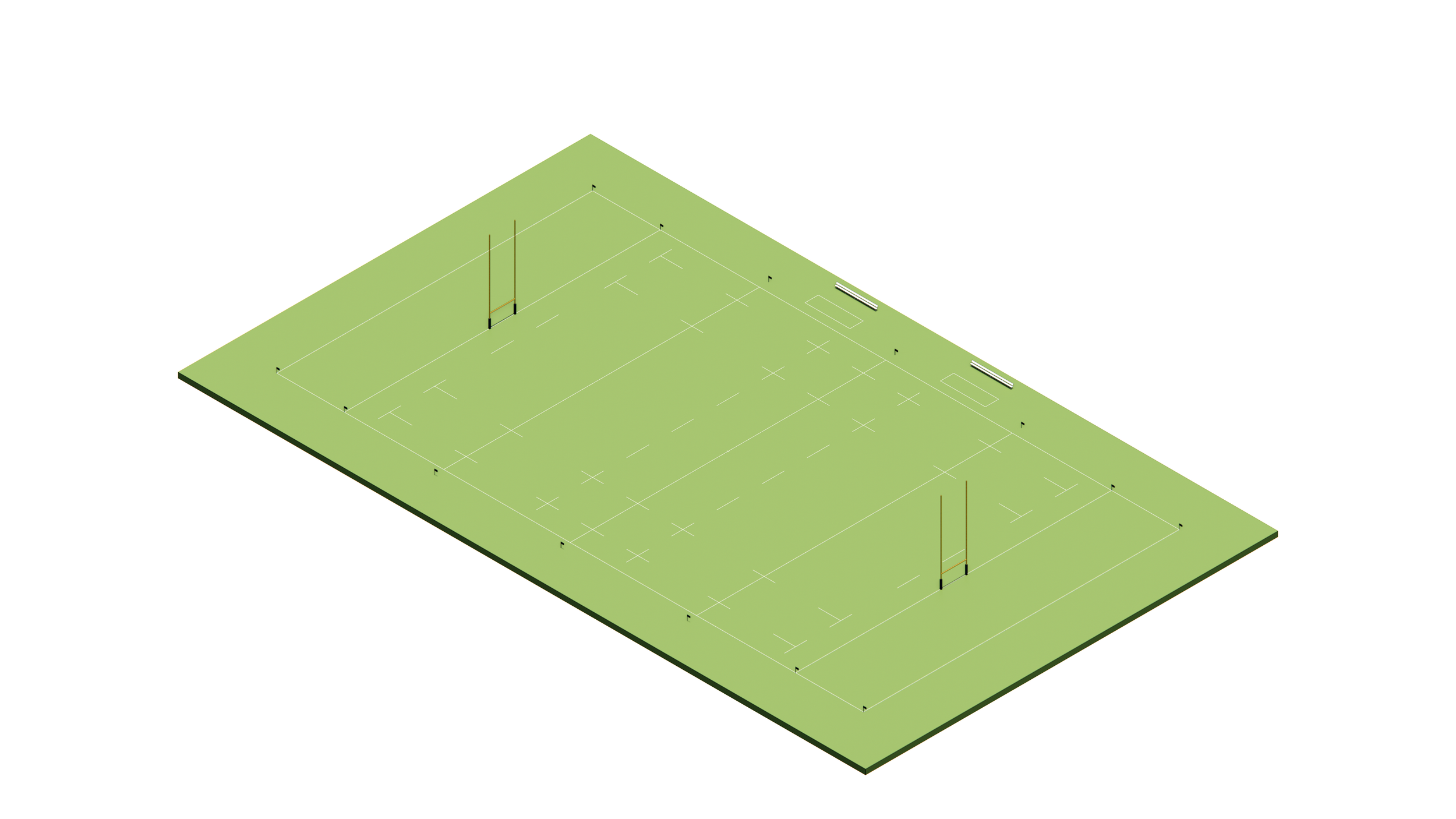

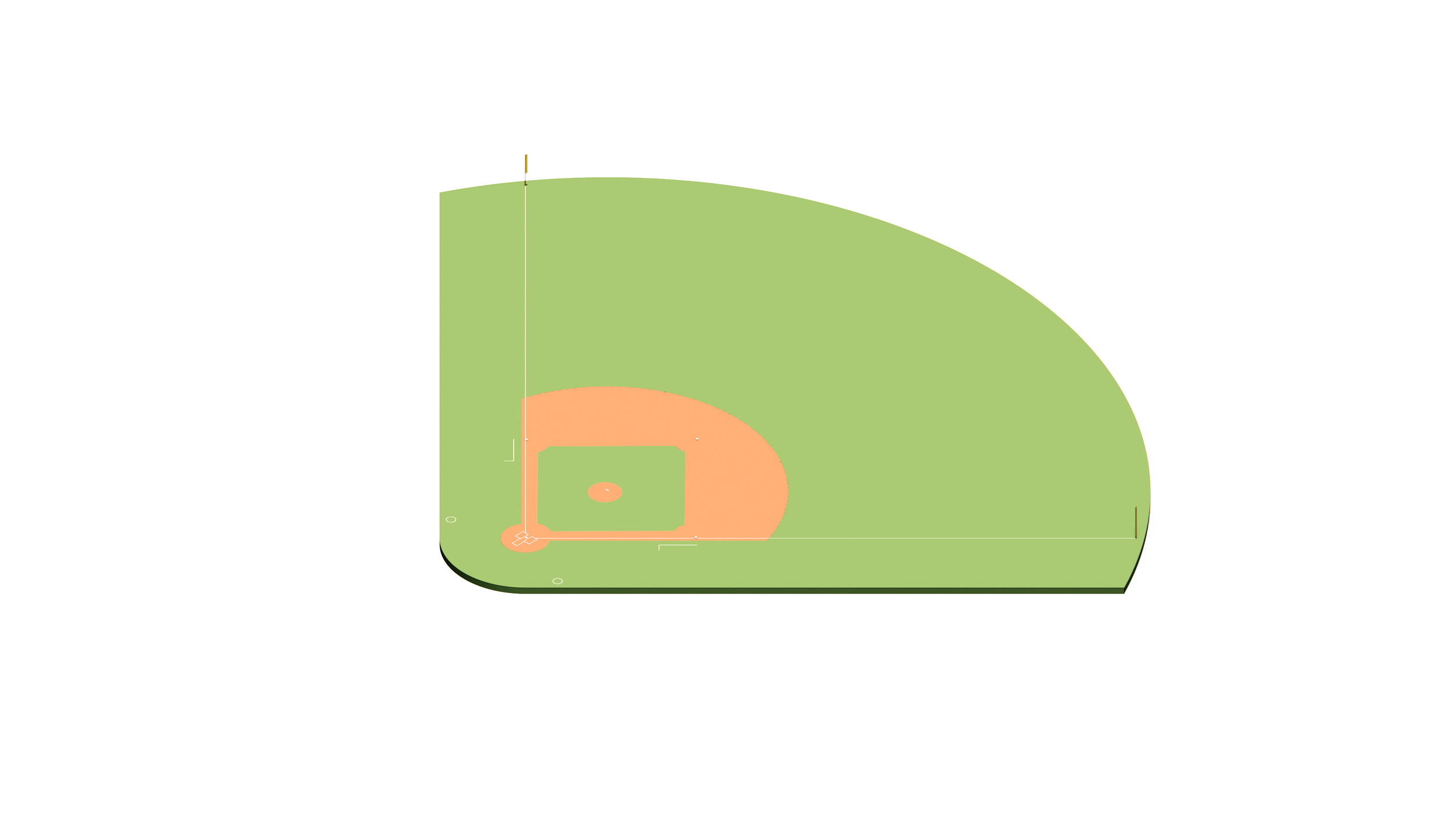

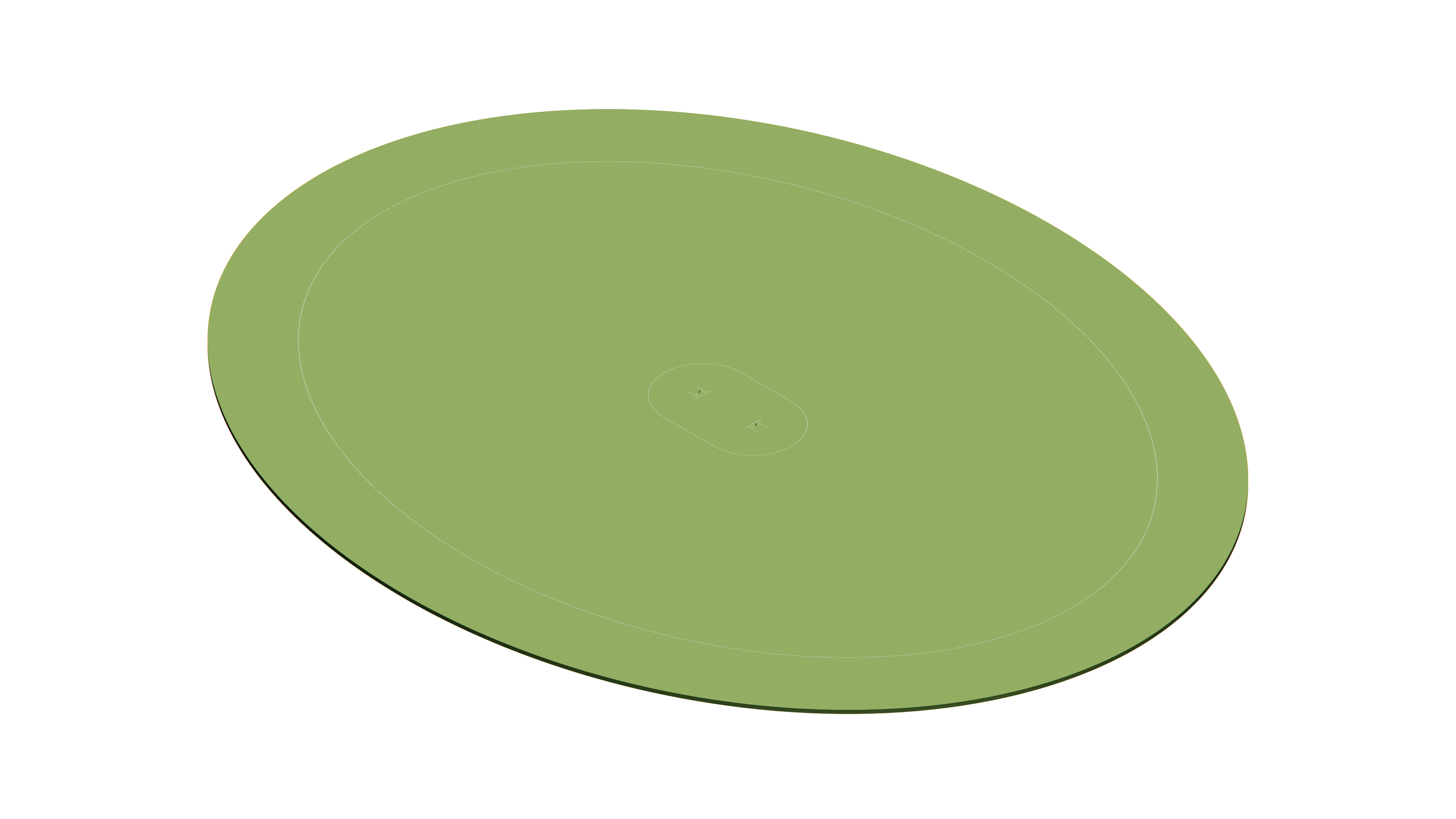

Includes Baseball, Soccer, Football, Lacrosse, Rugby, Cricket, Tennis,Pickleball, Beach Volleyball, Disc Golf, and Basketball Half Court Families. Many Families include multiple Types reflecting gender and league variations. Baseball includes Pinto through NCAA/MLB, Football covers High School and NFL/NCAA with goal post variants, Soccer spans U8 through NCAA, and Lacrosse and Beach Volleyball include Men's and Women's Types. Upon purchasing you'll be emailed a .ZIP file containing a Revit container file (.RVT) that serves as both an interactive instruction guide and a source for all 12 Families (.RFA) contained within the kit. No add-ins required.
Core Abilities
Families support 3D model geometry, adjustable sizing, standard and custom material mapping for rendering, display model features, and tagging. All Families have consistent behavior across views and project models.
Kit Contents
12 Revit Families, 25 Types, delivered in Revit 2022.
Includes Baseball, Soccer, Football, Lacrosse, Rugby, Cricket, Tennis,Pickleball, Beach Volleyball, Disc Golf, and Basketball Half Court Families. Many Families include multiple Types reflecting gender and league variations. Baseball includes Pinto through NCAA/MLB, Football covers High School and NFL/NCAA with goal post variants, Soccer spans U8 through NCAA, and Lacrosse and Beach Volleyball include Men's and Women's Types. Upon purchasing you'll be emailed a .ZIP file containing a Revit container file (.RVT) that serves as both an interactive instruction guide and a source for all 12 Families (.RFA) contained within the kit. No add-ins required.
Core Abilities
Families support 3D model geometry, adjustable sizing, standard and custom material mapping for rendering, display model features, and tagging. All Families have consistent behavior across views and project models.
